Glue Scheduler Job – Biz App' 빌드

Build

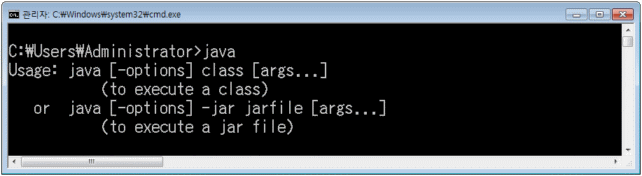

java 사용법에 따라 2가지로 packaging 할 수 있습니다.

class 실행

첫번째 java 사용법은 class를 실행하는 경우로서 아래와 같이 jar 파일을 생성합니다.

build.xml

<project name="GlueSample" default="jar" basedir=".">
    <property file="build.properties"/>
    <target name="init">
        <mkdir dir="${basedir}/build"/>
        <mkdir dir="${basedir}/buildfile"/>
    </target>
    <target name="javac" depends="init">
        <javac srcdir="${basedir}/src" destdir="${basedir}/buildfile" encoding="UTF-8">
            <classpath>
                <pathelement location="${GlueSDK.dir}/lib/gluelib/glue-core-4.2.7-RELEASE.jar" />
                <pathelement location="${GlueSDK.dir}/lib/gluelib/glue-schedule-4.2.7-RELEASE.jar" />
                <!-- add here ... -->
            </classpath>
        </javac>
    </target>
    <target name="jar" depends="javac">
        <jar destfile="${basedir}/build/sample1.jar">
            <fileset dir="${basedir}/buildfile">
                <patternset>
                    <include name="**/*.*"/>
                </patternset>
            </fileset>
            <fileset dir="${basedir}/src">
                <patternset>
                    <include name="applicationContext.xml"/>
                    <include name="ehcache.xml"/>
                    <include name="logback-test.xml"/>
                    <include name="layout/*.xml"/>
                    <include name="query/*.glue_sql"/>
                    <include name="service/*.xml"/>
                </patternset>
            </fileset>
        </jar>
    </target>
</project>

build.propereties
```
GlueSDK.dir=C:/eclipse/users/GlueSDK
```

jarfile 실행

두번째 java 사용법은 jarfile를 실행하는 경우로서 MENIFEST.MF 파일에 Main-Class 와 Class-Path 가 포함되어 있어야 합니다.
Main-Class 는 다음 중 하나를 사용할 수 있습니다.

com.poscoict.app.job.GlueSimpleJob : 권장
com.posco.glue.cm.DefaultSchedulerJob : deprecated
com.posco.glue.cm.PoscoDefaultSchedulerJob : POSCO MLE 라이브러리를 사용하는 탄소강 표준모델에서만 허용.

아래와 같이 jar 파일을 생성합니다.

build.xml

<project name="GlueSample" default="user-application" basedir=".">
    <property file="build.properties"/>
    <target name="init">
        <mkdir dir="${basedir}/build"/>
        <mkdir dir="${basedir}/build/lib"/>
        <mkdir dir="${basedir}/buildfile"/>
    </target>
    <path id="class.path">
        <fileset dir="${GlueSDK.dir}/lib/gluelib" >
            <include name="*.jar"/>
        </fileset>
        <fileset dir="${GlueSDK.dir}/lib/gluestd" >
            <include name="*.jar"/>
        </fileset>
        <!-- add here .. -->
    </path>
    <pathconvert property="class-path" pathsep=" " dirsep="\">
        <path refid="class.path"/>
        <map from="${GlueSDK.dir}/lib/gluestd" to="lib"/>
        <map from="${GlueSDK.dir}/lib/gluelib" to="lib"/>
        <!-- add here .. -->
    </pathconvert>
    <target name="javac" depends="init">
        <javac srcdir="${basedir}/src" destdir="${basedir}/buildfile" encoding="UTF-8">
            <classpath>
                <pathelement location="${GlueSDK.dir}/lib/gluelib/glue-core-4.2.6-RELEASE.jar" />
                <pathelement location="${GlueSDK.dir}/lib/gluelib/glue-schedule-4.2.6-RELEASE.jar" />
                <!-- add here ... -->
            </classpath>
        </javac>
    </target>
    <target name="user-application" depends="javac">
        <jar destfile="${basedir}/build/user-application.jar">
            <manifest>
                <attribute name="Main-Class" value="com.poscoict.app.job.GlueSimpleJob"/>
                <attribute name="Class-Path" value="${class-path}" />
            </manifest>
            <fileset dir="${basedir}/buildfile">
                <patternset>
                    <include name="**/*.*"/>
                </patternset>
            </fileset>
            <fileset dir="${basedir}/src">
                <patternset>
                    <include name="applicationContext.xml"/>
                    <include name="ehcache.xml"/>
                    <include name="**/*.xml"/>
                    <include name="**/*.glue_sql"/>
                </patternset>
            </fileset>
        </jar>
    </target>
</project>

build.propereties
```
GlueSDK.dir=C:/eclipse/users/GlueSDK
```

How to test

실행옵션과 JobData에 따라 다음과 같은 Java명령어를 통해 테스트가 가능합니다.
[args..] 부분의 첫번재 인자는 고정값 -1 으로 합니다.

cd C:/scheduler-server/apps/
java -DCONFIG_PATH=C:/scheduler-server/apps -Dlog.file=C:/scheduler-server/logs/test.log -cp ./sample1.jar;./lib/*; com.poscoict.app.job.GlueSimpleJob -1 ServiceName=job001-service@S

cd C:/scheduler-server/apps/
java -DCONFIG_PATH=C:/scheduler-server/apps -Dlog.file=C:/scheduler-server/logs/test.log -cp ./sample2.jar;./lib/*; com.poscoict.app.job.GlueSimpleJob -1 className=sample.job.SamplePgm@S

cd C:/scheduler-server/apps/
java -DCONFIG_PATH=C:/scheduler-server/apps -Dlog.file=C:/scheduler-server/logs/test.log -jar user-appliction.jar -1 className=sample.job.SamplePgm@S

cd C:/scheduler-server/apps/
java -DCONFIG_PATH=C:/scheduler-server/apps -Dlog.file=C:/scheduler-server/logs/test.log -jar user-appliction.jar -1 ServiceName=job001-service@S
