com.poscoict.glueframework.message.layout
Class GlueDBMessageLayout

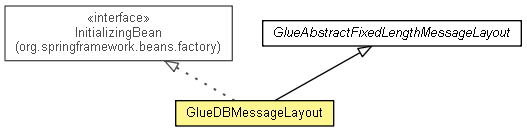

java.lang.Object
  com.poscoict.glueframework.message.layout.GlueAbstractFixedLengthMessageLayout
      com.poscoict.glueframework.message.layout.GlueDBMessageLayout

All Implemented Interfaces:

GlueMessageLayout, org.springframework.beans.factory.DisposableBean, org.springframework.beans.factory.InitializingBean

public class GlueDBMessageLayout
extends GlueAbstractFixedLengthMessageLayout
implements org.springframework.beans.factory.InitializingBean

Message를 DB에 정의된 Layout에 따라 Create, Parsing시 사용할수 있도록 구현된 Implement Class. GlueDBMessageLayout Class는 Master DB로 부터 TC에 해당하는 Layout 정보를 읽어 와서 TC를 Parse 하거나 Create 하게 한다.

 bean property 설정

 - cacheManager : (선택) default 는 'cacheManager' 임.
   applicationContext.xml 의 Cache Manager의 bean id가 'cacheManager가 아닐 경우 사용한다.

  - msgParsingType : (선택) default는 'byte'
    적용 우선순위
    1. msgParsingType bean property의 값
    2. glue.properties 의 msg.parsing.type 에 해당하는 값
    3. default 값

 - charset : (선택) default는 java.nio.charset.Charset.defaultCharset() 값임.

 - dao : (선택) default는 'masterdao' 임.
   applicationContext.xml 의 Dao의 bean id가 'masterdao'가 아닐 경우 사용한다.

 - queryId : (선택) default는 'get_msg_layout_query' 임.
   query file에 query id가 'get_msg_layout_query' 이 아닐 경우 사용한다.


 applicationContext.xml
 <bean id="layoutInDB" class="com.poscoict.glueframework.message.layout.GlueDBMessageLayout">
     <property name="dao" ref="masterdao"/>
     <property name="queryId" value="get_msg_layout_query"/>
     <property name="cacheManager" ref="cacheManager"/>
     <property name="msgParsingType" value="byte"/>
 </bean>
 <bean id="masterdao" class="com.poscoict.glueframework.dao.jdbc.GlueJdbcDao">
     <property name="dataSource"><ref local="masterData"/></property>
     <property name="queryManager"><ref local="queryManager"/></property>
 </bean>
 <bean id="masterData" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
      <property name="driverClassName" value="oracle.jdbc.driver.OracleDriver"/>
      <property name="url" value="jdbc:oracle:thin:@127.0.0.1:1521:ORCL"/>
      <property name="username" value="GLUEMAST"/>
      <property name="password" value="GLUEMAST"/>
      <property name="defaultAutoCommit" value="false"/>
 </bean>

 service 파일 : [MSGFW001]-service.xml
 <activity name="MessageParse" class="com.poscoict.glueframework.biz.activity.GlueMessageParse">
     <transition name="success" value="BizLogic" />
     <property name="layout" value="layoutInDB" />
 </activity>

 query 파일 : [layout]-query.glue_sql
 <?xml version="1.0" encoding="UTF-8"?>
 <queryMap desc="Layout조회용">
     <query id="get_msg_layout_query" desc="" resultType="" isNamed="false">
         <![CDATA[
 SELECT MDL_DEFINE_DT_NM_SEQ,
   MDL_DEFINE_DT_NM_GROUP_TP,
   STANDARD_ENGLISH_ID,
   STANDARD_KOREAN_NAME,
   MDL_DEFINE_DT_NM_DATA_TP,
   MDL_DEFINE_DT_NM_LEN,
   MDL_DEFINE_DT_NM_V_DECI_PREC
 FROM TB_M00_INTERFACE_ATTRS
 WHERE MDL_DEFINE_ID IN ( SELECT FK_MDL_DEFINE_ID
                          FROM TB_M00_INTERFACES
                          WHERE MDL_DEFINE_NM=?
                            AND END_ACTIVE_DATE=TO_DATE('2999/12/31 23:59:59','YYYY/MM/DD HH24:MI:SS')
                        )
 ORDER BY MDL_DEFINE_DT_NM_SEQ ASC
       ]]>
     </query>
 </queryMap>


Field Summary

Fields inherited from class com.poscoict.glueframework.message.layout.GlueAbstractFixedLengthMessageLayout

logger, MSG_TYPE_BYTE, MSG_TYPE_STRING

Constructor Summary

GlueDBMessageLayout()

Method Summary

void	afterPropertiesSet()
GlueMessage	createMessageObject(String tc)
List<GlueMessageAttributeDefinition>	getAttributesDefinition(String tcid)
GlueGenericJdbcDao	getDao()
String	getQueryId()
void	setDao(GlueGenericJdbcDao dao) setter method for DI.
void	setQueryId(String queryId) setter method for DI.

Methods inherited from class com.poscoict.glueframework.message.layout.GlueAbstractFixedLengthMessageLayout

destroy, getAttributes, getCacheManager, getCharset, getMsgParsingType, makeMessageParsing, makeMessageString, setCacheManager, setCharset, setMsgParsingType

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

GlueDBMessageLayout

public GlueDBMessageLayout()

Method Detail

getDao

public GlueGenericJdbcDao getDao()

setDao

public void setDao(GlueGenericJdbcDao dao)

setter method for DI.

Parameters:

dao -

getQueryId

public String getQueryId()

setQueryId

public void setQueryId(String queryId)

setter method for DI.

Parameters:

queryId -

getAttributesDefinition

public List<GlueMessageAttributeDefinition> getAttributesDefinition(String tcid)
                                                             throws GlueMessageDefinitionException

Specified by:

getAttributesDefinition in class GlueAbstractFixedLengthMessageLayout

Returns:

GlueMessageAttributeDefinition List

Throws:

GlueMessageDefinitionException

createMessageObject

public GlueMessage createMessageObject(String tc)

Specified by:

createMessageObject in class GlueAbstractFixedLengthMessageLayout

Returns:

GlueMessage

afterPropertiesSet

public void afterPropertiesSet()
                        throws Exception

Specified by:

afterPropertiesSet in interface org.springframework.beans.factory.InitializingBean

Throws:

Exception
